Ensuring accurate gear measurement is essential for manufacturers aiming for consistent quality. They at ZDCY provide solutions that support high-precision analysis through their advanced gear measuring machine offerings. Facilities operating a gear metrology center rely on equipment that combines mechanical stability with intelligent software to minimize errors. By integrating these systems, engineers can monitor complex gear geometries effectively while improving productivity and reliability in production processes.
Optimized Software for Precision
A critical aspect of modern measurement is the software used in gear inspection. ZDCY’s CY65P gear measuring center is equipped with a Windows-based system that manages gear alignment, tooth finding, indexing, and detection automatically. The software ensures that repeated measurements of tooth profile and direction show error variation below 1μm. High-end gear metrology centers benefit from this combination of automated data acquisition and sophisticated software algorithms, which allows engineers to analyze spiral bevel gears, straight bevel gears, involute cylindrical gears, and cutting tools with confidence and accuracy.
Versatile Hardware Integration

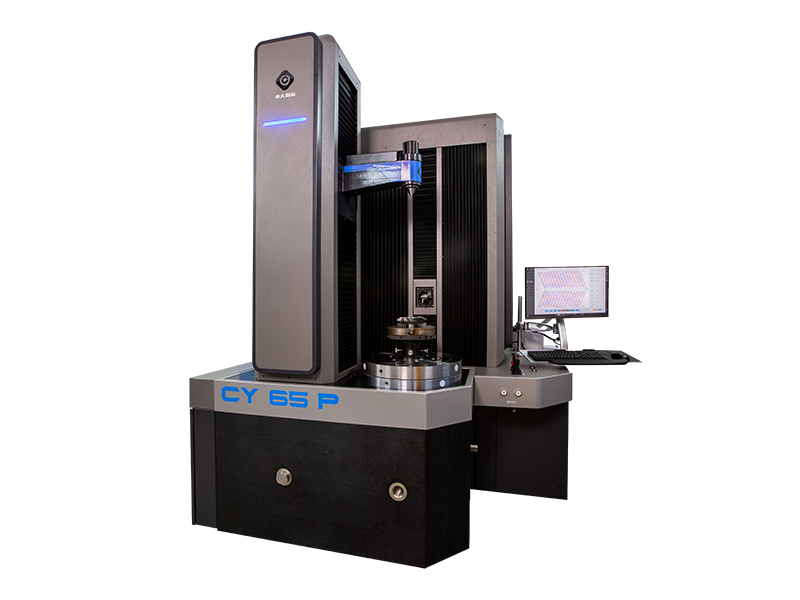

The CY65P features a granite base and integrated main-machine structure, incorporating full-face direct-drive technology (DDR, DDL) and a 3D digital probe with a probe management system. This design ensures that the gear measuring machine maintains stability while handling various workpieces, from hobs and slotting cutters to pointed cutters. Facilities equipped with a gear metrology center can therefore achieve comprehensive inspections in a single setup, improving workflow efficiency while maintaining measurement precision across different gear types.
Conclusion: Enhancing Analysis Capabilities
By combining stable hardware and reliable software, ZDCY enables gear metrology centers to perform comprehensive analyses efficiently. The CY65P gear measuring center provides automated alignment, precise tooth detection, and accurate data management, supporting engineers in maintaining quality standards. Selecting a gear measuring machine with integrated software solutions ensures repeatable results and reduces inspection time, making it easier for facilities to uphold stringent production requirements. High-end gear facilities increasingly rely on ZDCY equipment to streamline measurement processes and enhance confidence in every inspection.
